Foreler

7-inch capacity PTO wood chipper. Hydraulic-driven feed rollers and stable heavy rotor handle various wood for outdoor jobs
  • Models Available
    Foreler0 7 PTO
  • HP Requirement
    30-100hp

Overview

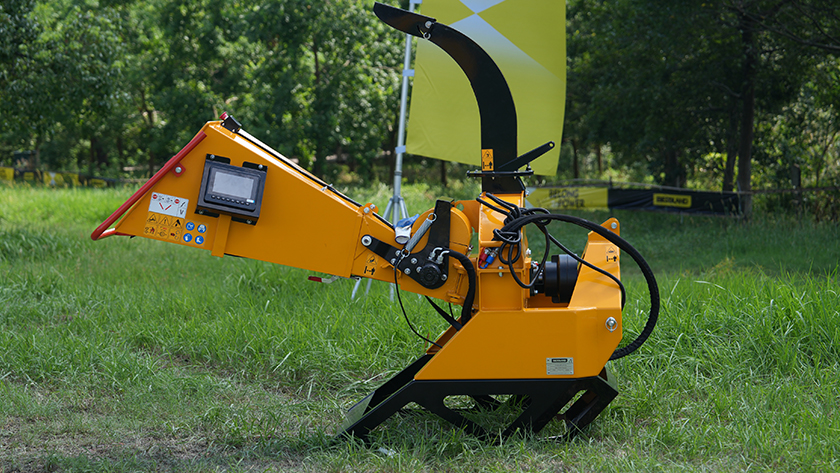

This Foreler 07 PTO wood chipper features a maximum cutting

diameter of 7inches,ideal for rural sites, fencelines and similar

applications. The hydraulically driven feed rollers workin tandem

with a heavy-duty rotor for smooth chipping of timber, branches

and wood piles. Feed speedis steplessly adjustable via solenoid

valve control from the LCD display screen, while an automatic

anti-jam function reverses the rollers to clear blockages without

stopping the machine.

Features

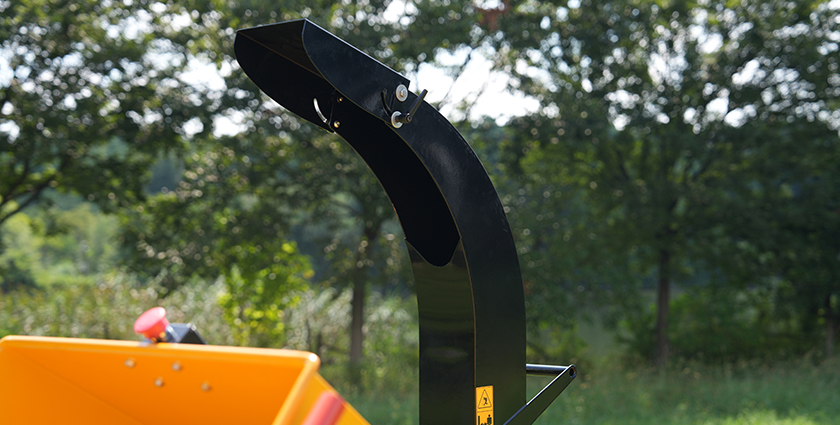

Adjustable Discharge Chute

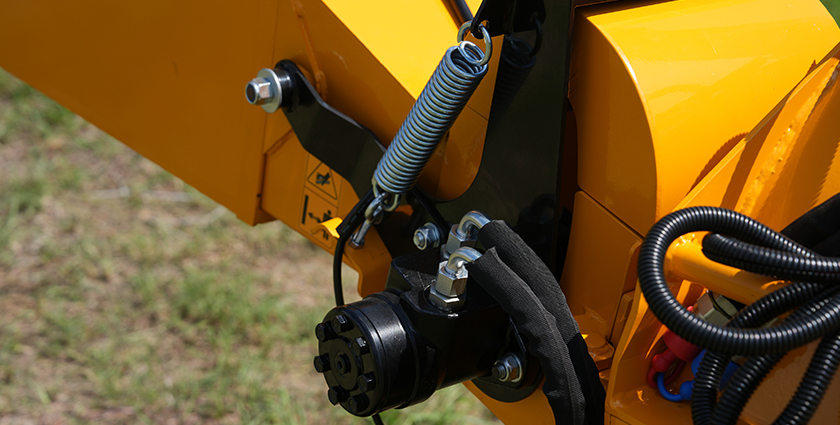

Hydraulic Driven Feed Roller

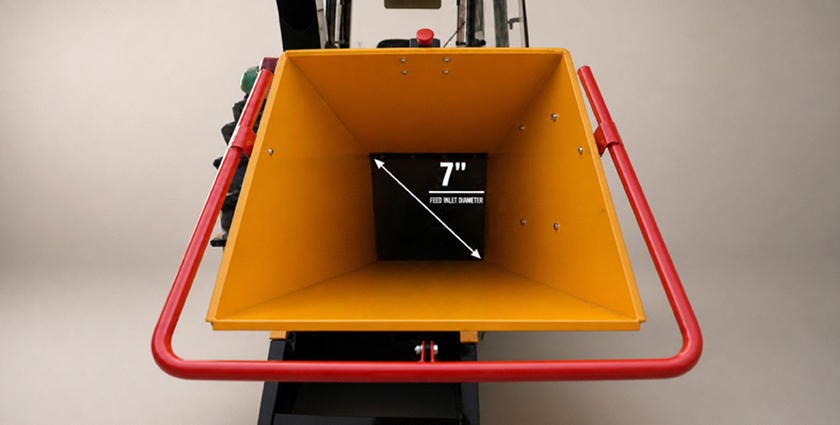

7inch(177mm)Chipping Capacity

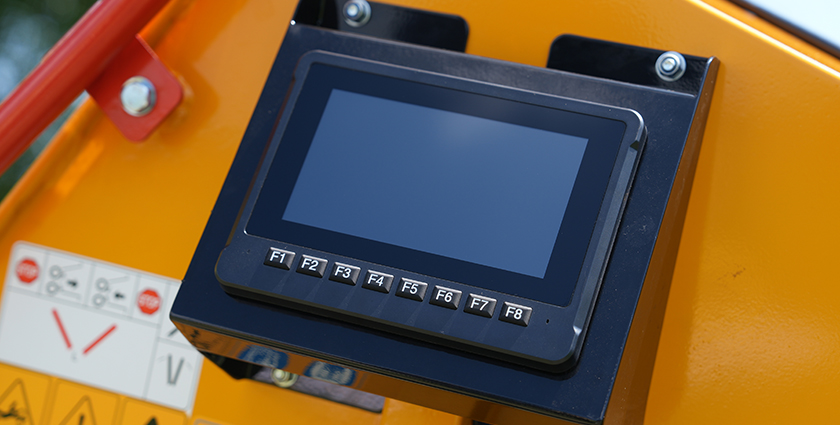

Touch screen controller

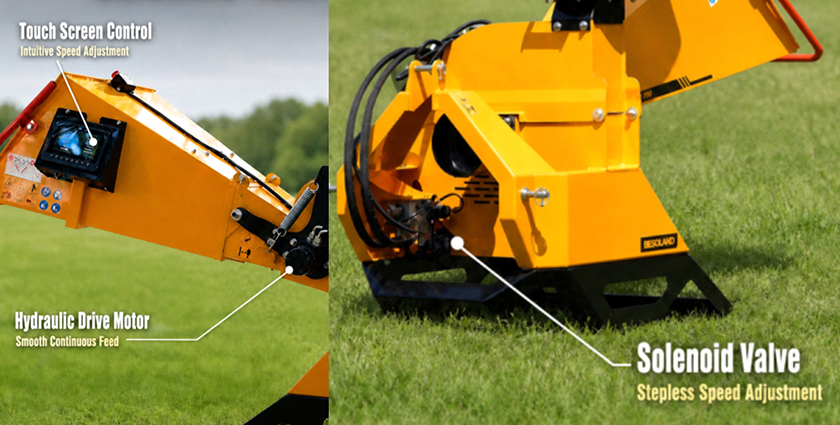

Stepless Feed Speed Adjustment via Solenoid Valve

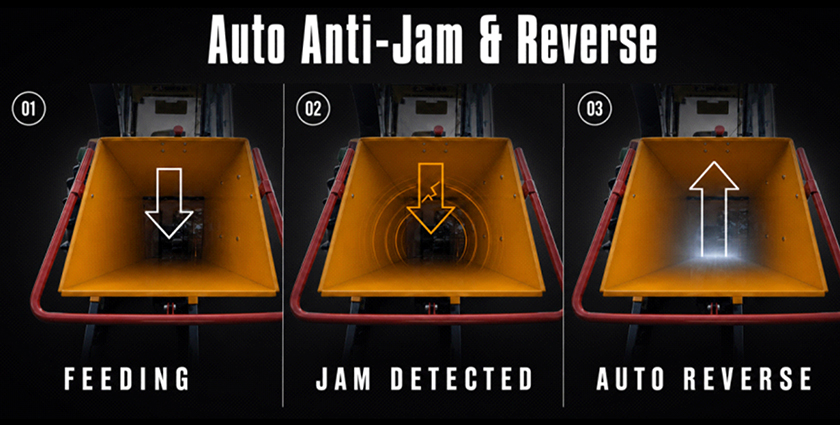

Automatic Anti-jam & Auto-Reverse Function

Features

Model                                                   Foreler 07 PTO
Feed System Hydraulic Roller
HP Requirement 30-100hp
Drive System PTO Direct Drive
Chipping Capacity 7″ (17.7 cm)
Chipper Infeed Opening 8″×7″ (20×18 cm)
Chipper Type Disc
Required Hydraulic Flow ≥4L/min
Chipper Hopper Opening 26″×22″ (66×56 cm)
Number of Chipper Knives 4pcs
Rotor Diameter 27″ (68 cm)
Rotor Weight 87kg
Discharge Chute Height 74″ (185 cm)
Discharge Chute Rotation 360°
PTO SPEED 540rpm
PTO Height 39″(100cm)
Total Weight 360kg
Dimensions Open (L×W×H) 84″×42″×74″(214×107×187cm)
Mounting System CAT1&CAT2
* The final data shall be based on theactual factoryproducts

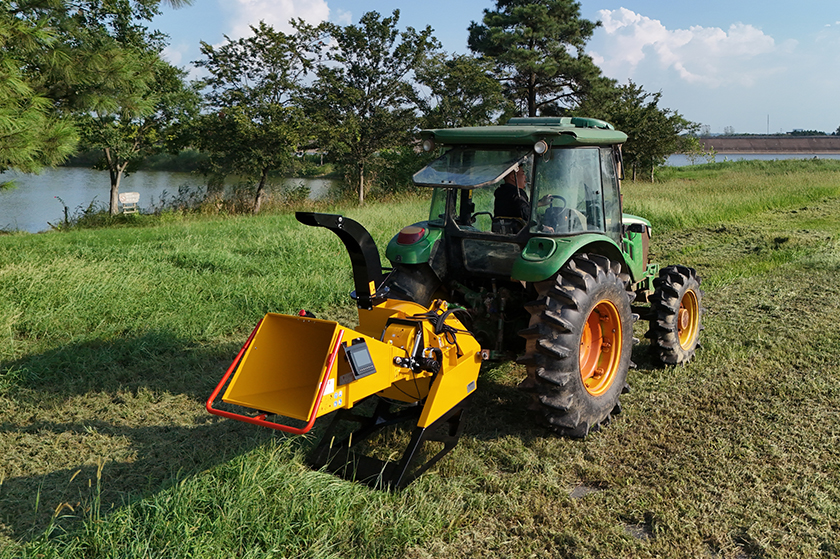

Working Scenarios

09

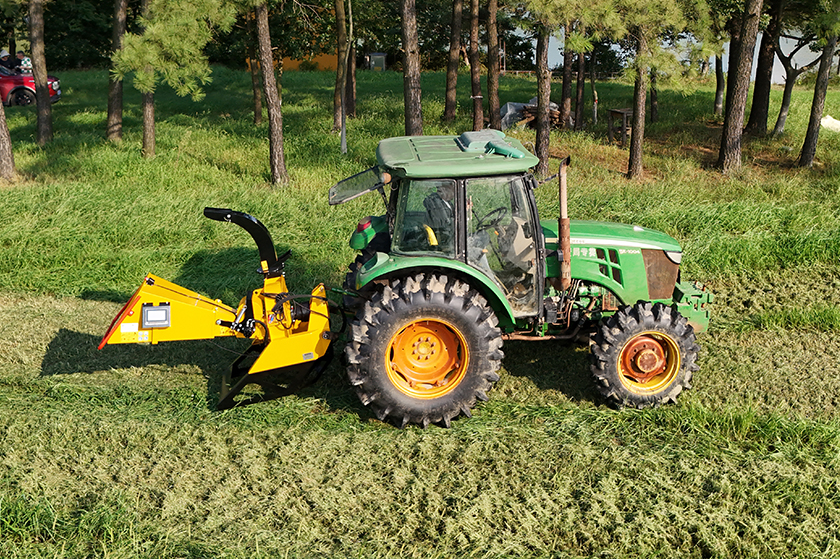

11

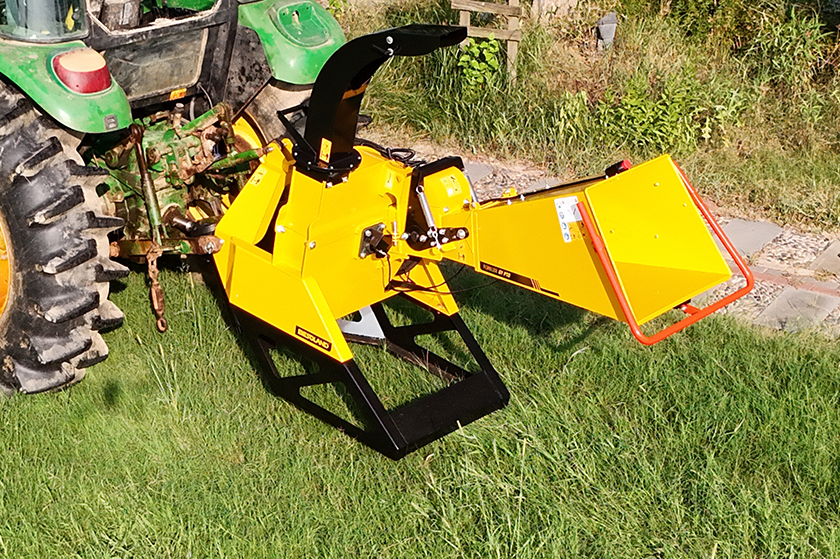

10

FAQS

  • Branches, twigs, logs, bamboo, corn stalks, cotton stalks and other agricultural or forestry residues — both hardwood and softwood within the rated feed diameter. Fresh (green) wood feeds more smoothly than very dry wood.
